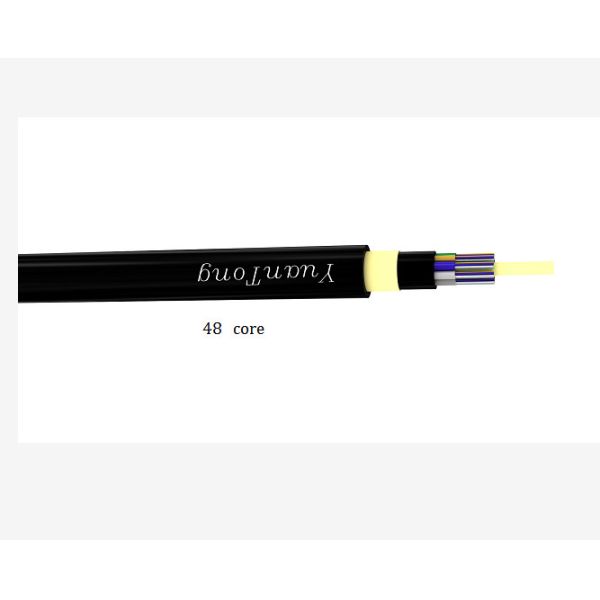

48core Arimid Yarn Member ADSS Fiber Optic Cable For Aerial
Quick detail

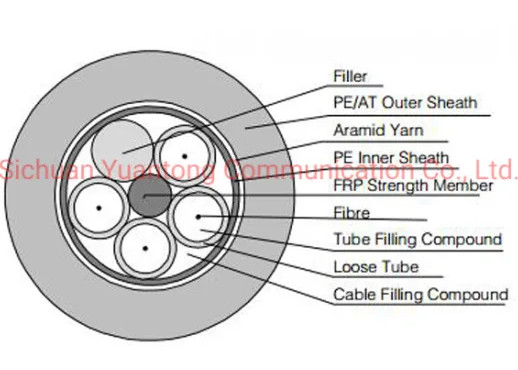

Double Layer Aerial ADSS Cable is up to 144 optical fibres in jelly-filled loose tubes, laid up around a central non-metallic strength member. The cable is water blocked, aramid yarn reinforced and polyethylene sheathed. Surface printing for the cable includes sequential length marking at one-metre intervals. Mainly installed at existing 220kV or lower voltage power lines . Two Jacket and stranded loose tube design.
Characteristics
1. Small cable diameter, light weight, 150m span, low attached load on tower
2. Tensile strength is over 90KN
3. Non-metal structure, good insulation, anti-thunder
4. Fine production technology, even force for aramid fiber, with superior stress flexibility
5. Adapt for bad climate
6. May construct without power cut, a power line failure doesn’t influence cable’s normal transfer
7. Tensile units are elastic modulus aramid fiber
8. Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E)≤25KV/m
Application
1. Long distance communication and local area network, especially suitable for long span environment,complex area.
2. Erect on the same pole with power line in new and old power line.
| Category | Description | Specifications |
| G.652D |
| Optical Specifications | Attenuation | @1310nm | ≤0.36dB/km |
| @1550nm | ≤0.22dB/km |
| Attenuation discontinuity | ≤0.05 dB |
| Attenuation vs. Wavelength | @1285~1330nm | ≤0.05 dB/km |
| @1525~1575nm | ≤0.05 dB/km |
| Zero Dispersion Wavelength | 1300~1324nm |
| Zero Dispersion Slope | ≤0.092ps/(nm2.km) |
| Dispersion | @1310nm | ≤3.5 ps/nm.km |
| @1550nm | ≤18 ps/nm.km |
| Polarization Mode Dispersion(PMD) | ≤0.2ps/km1/2 |
| Cable Cutoff Wavelength(λcc) | ≤1260nm |
| Effective Group Index of Refraction | @1310nm | 1.4675 |
| @1550nm | 1.4681 |
| Macro bend loss (30mm radius,100turns) 1625nm | ≤0.1 dB |
Geometric
Specifications | Mode Field Diameter | @1310nm | 9.2±0.6μm |
| @1550nm | 10.4±0.8μm |
| Cladding Diameter | 125±1μm |
| Cladding Non-Circularity | ≤1.0% |
| Coating Diameter | 245±7μm |
| Coating/Cladding Concentricity Error | ≤8μm |
| Core/Cladding Concentricity Error | ≤0.8μm |
Mechanical
Specifications | Proof Test level | ≥1.0% |
| Fiber Curl Radius | ≥4.0m |
| Peak Coating Strip Force | 1.3~8.9N |
| Fiber Count |
Outer
Dia. (mm)
|
Tensile Resistance(N)
|
Crush Resistance (N/100m)
|
Mini Bending Radius (mm)
|
Attenuation (dB/km)
|
Operation
Temperature (℃)
|
N.W.
(kg/km)
|
| 32-60 | 10.2 | 1000 | 3000 | 1000 | 3000 | 10D | 20D | ≤ 3.0 | ≤ 1.5 | -40℃~+60℃ | 99 |
