Figure 8 Outdoor Armored Drop Cable Aerial Optical Fiber Optic Cable (GYTC8S) China Manufacturer Overhead Self-Supporting

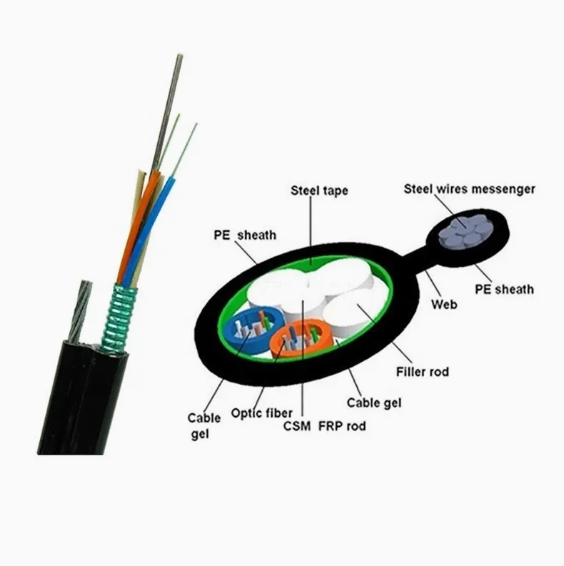

The structure of the Self Supporting Aerial Cable GYTC8A optical cable involves inserting an optical fiber into a loose tube crafted from high modulus material, with the loose tube being filled with a water-proof compound. At the center of the cable core is a metal reinforcing core, around which the loose tubes are twined to form a compact and rounded cable core. The cable core is longitudinally wrapped with a layer of plastic-coated steel tape, and the steel wire strands are integrated into an 8-shaped polyethylene sheath.
- “8” Shape Optical Cable
- Loose Tube Type and Stranded With Jelly Filling
- Polyethylene Sheathed Outdoor Communication Cable
Application

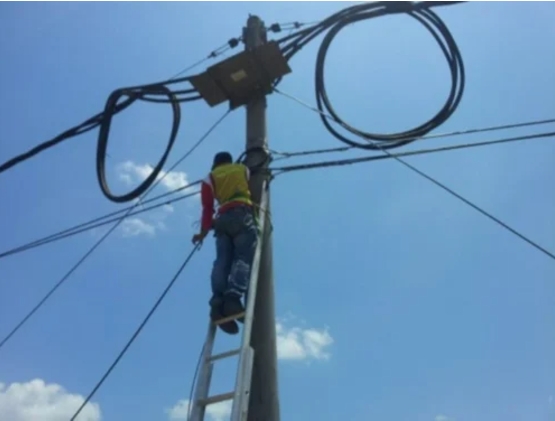

Adopted Specifically for an aerial self-supporting installation mode, it is applicable to both the access network and the local network in areas with high levels of electromagnetic interference. It can effectively handle the communication requirements of long-distance networks as well as local area networks.
Technical Parameter
| Fiber Count | N.W(kg/km) | Cable Diameter | Tensile Resistance/N | Crush
Resistamce/(N/100m) |
| mm | Long term | Short term | Long term | Short term |
| 6 | 170 | 5.6+9.2/16.8 | 3000 | 8000 | 3000 | 1000 |
| 12 | 170 | 5.6+9.2/16.8 | 3000 | 8000 | 3000 | 1000 |
| 24 | 170 | 5.6+9.2/16.8 | 3000 | 8000 | 3000 | 1000 |
| 36 | 190 | 5.6+9.7/17.3 | 3000 | 8000 | 3000 | 1000 |
| 42 | 210 | 5.6+11/18.6 | 3000 | 8000 | 3000 | 1000 |
| 48 | 210 | 5.6+11/18.6 | 3000 | 8000 | 3000 | 1000 |
| 72 | 250 | 5.6+11.8/19.4 | 3000 | 8000 | 3000 | 1000 |
| 144 | 370 | 5.6+16.8/24.4 | 3000 | 8000 | 3000 | 1000 |
Company Profile
Sichuan Yuantong Communication Co., Ltd, a national key high-tech enterprise, is situated in the beautiful "land of abundance" - Chengdu. Our company is dedicated to the research and development, and the manufacturing of various types of fiber optic cables, including indoor and outdoor fiber optic cables, power optical fiber cables, submarine optical cables, and special optical cables, etc. Yuantong has more than 200 employees, among whom 20% are senior engineers and 30% are mid-level personnel. The company has obtained numerous national approval certificates, such as ISO9001 for quality management, ISO14001 for environmental management, health management, and TLC.
Our Services:
- Offer customer solutions within a matter of days.
- Provide warm services with meticulous attentions.
- Be able to provide responses to your specific inquiries within 24 hours.
- Significantly save costs and bring greater benefits for customers to expand their businesses.
- We possess 20 years of experience in this field and are the professional supplier you can rely on.
- We have a deep understanding of the Chinese market, thus we can communicate effectively to assist you in finding the products you require!
- We recognize the customers' strict quality requirements for optical fiber products and commit to supplying products that meet international standards.
